Seagate Manor Seawall & Boardwalk
Name
Seagate Manor Seawall & Boardwalk
Location
Delray Beach, Florida
Palm Beach County
Owner
Seagate Manor Condominium
Engineer
scope of work

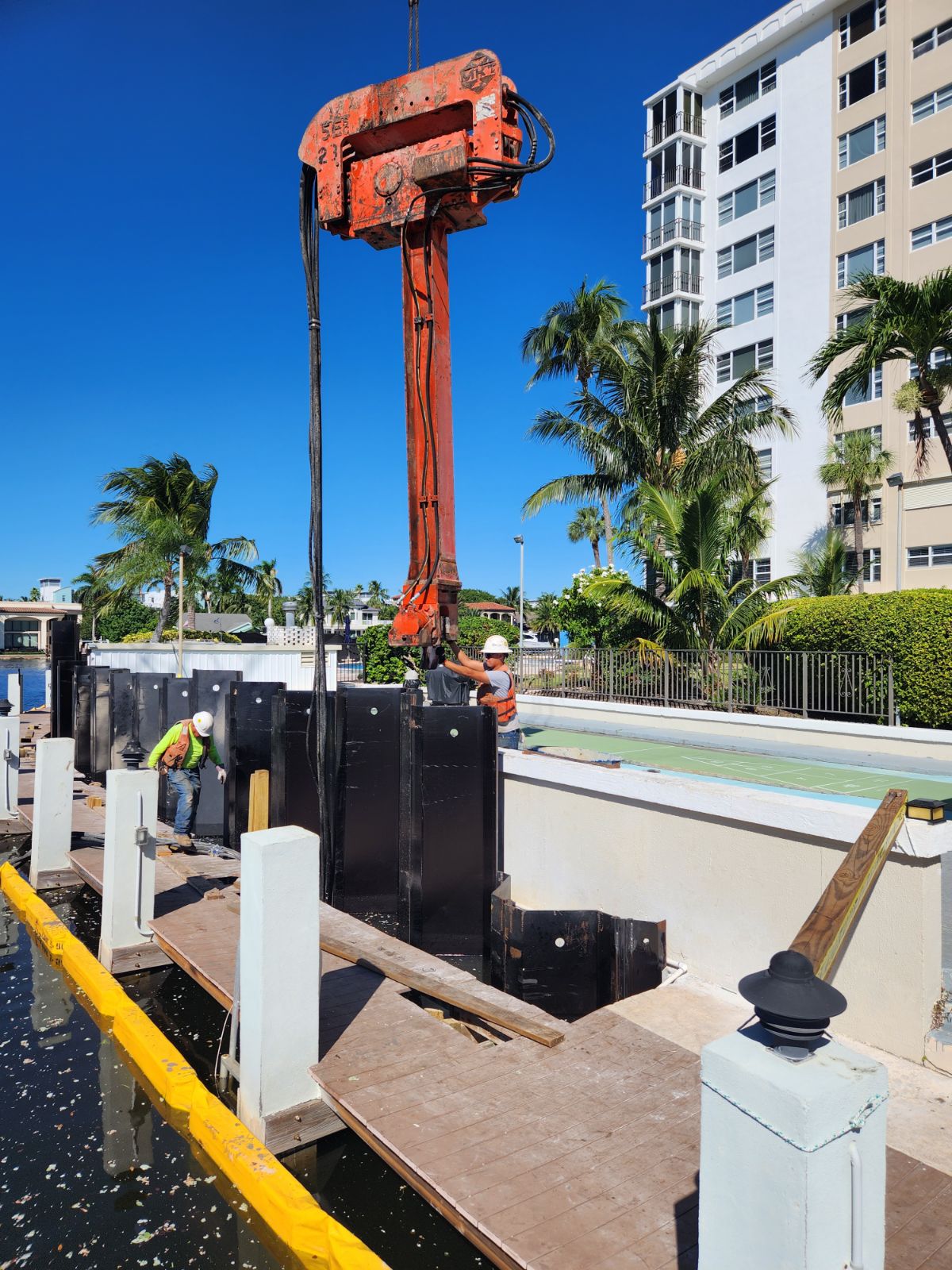

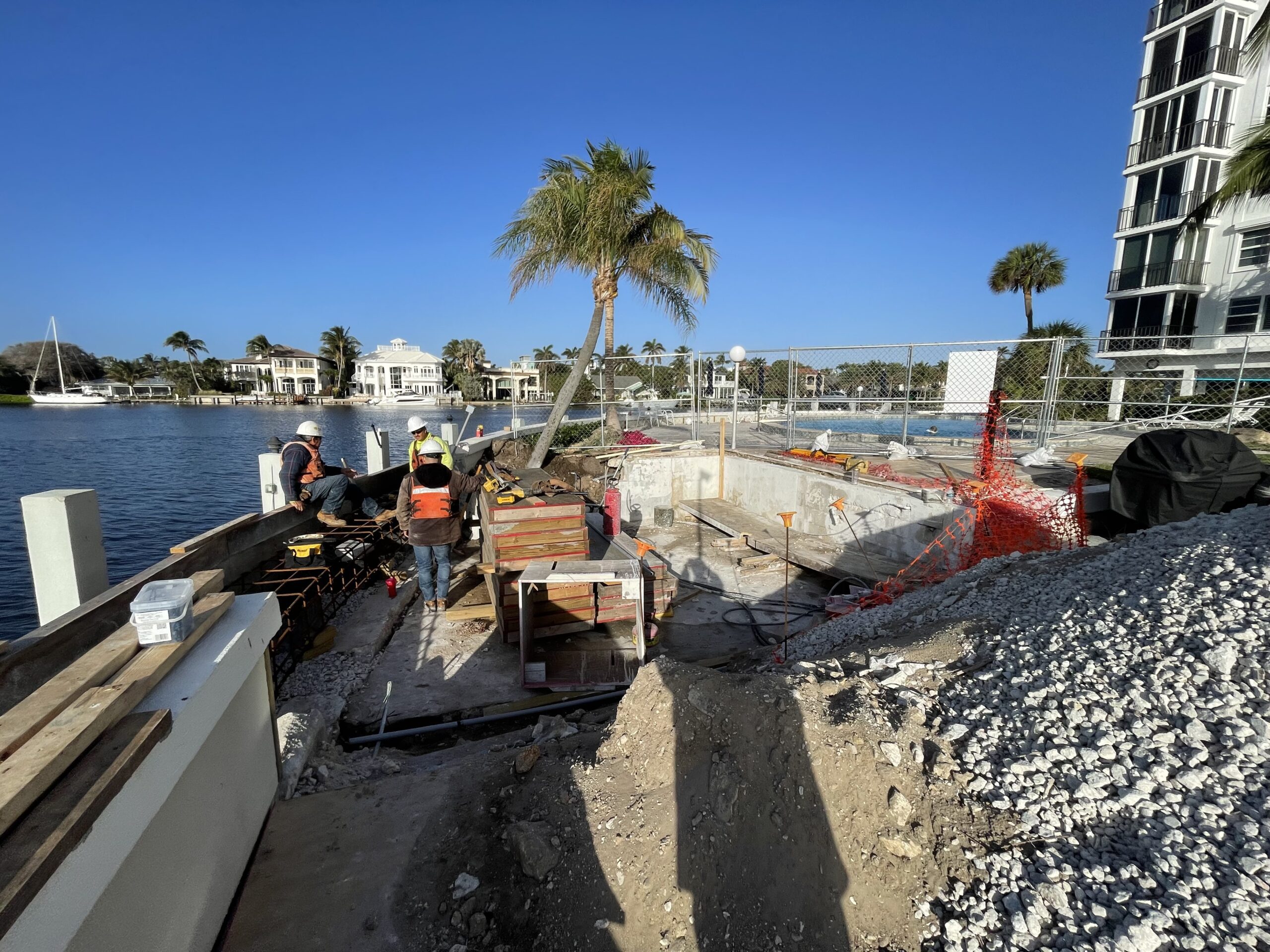

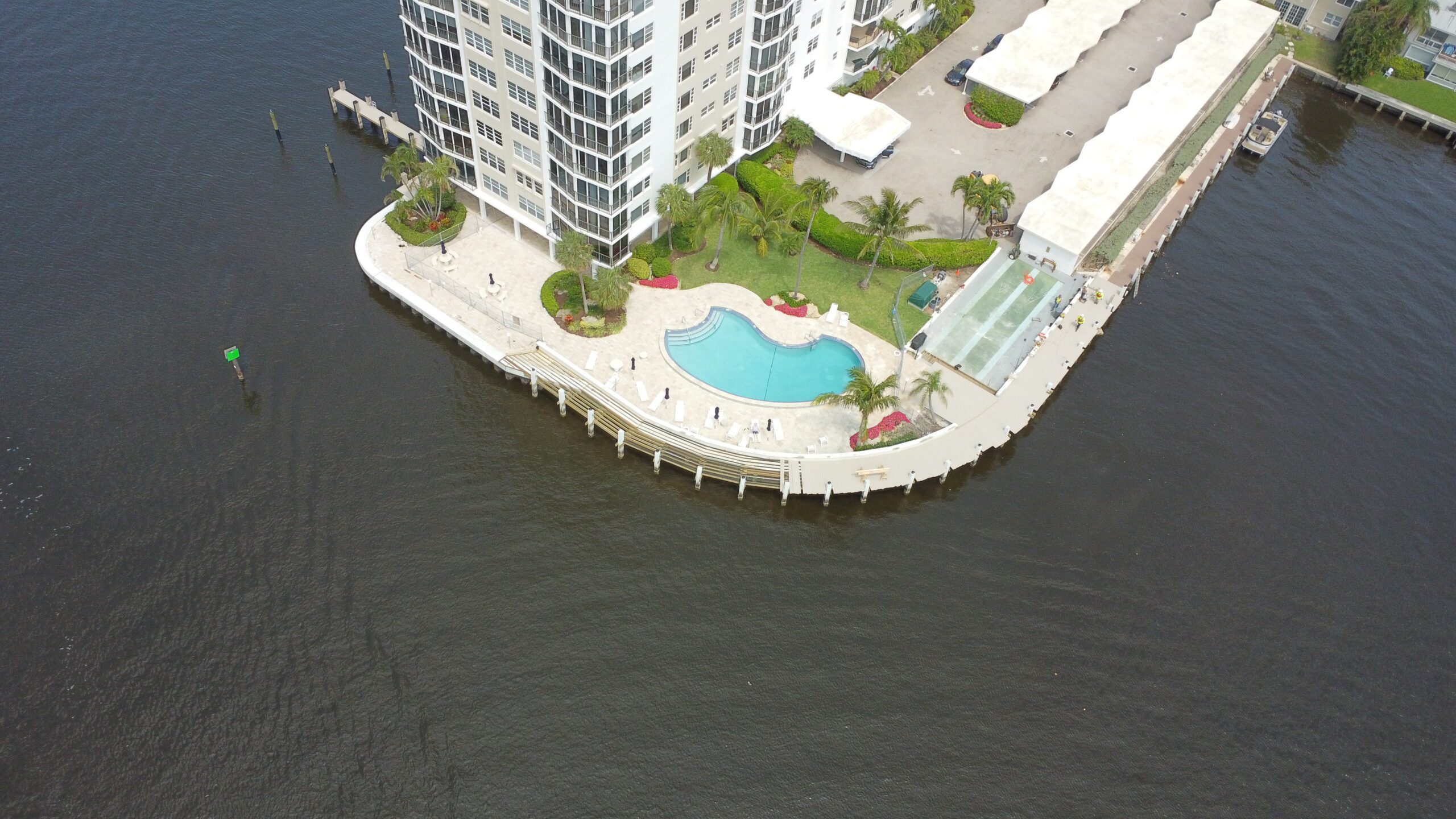

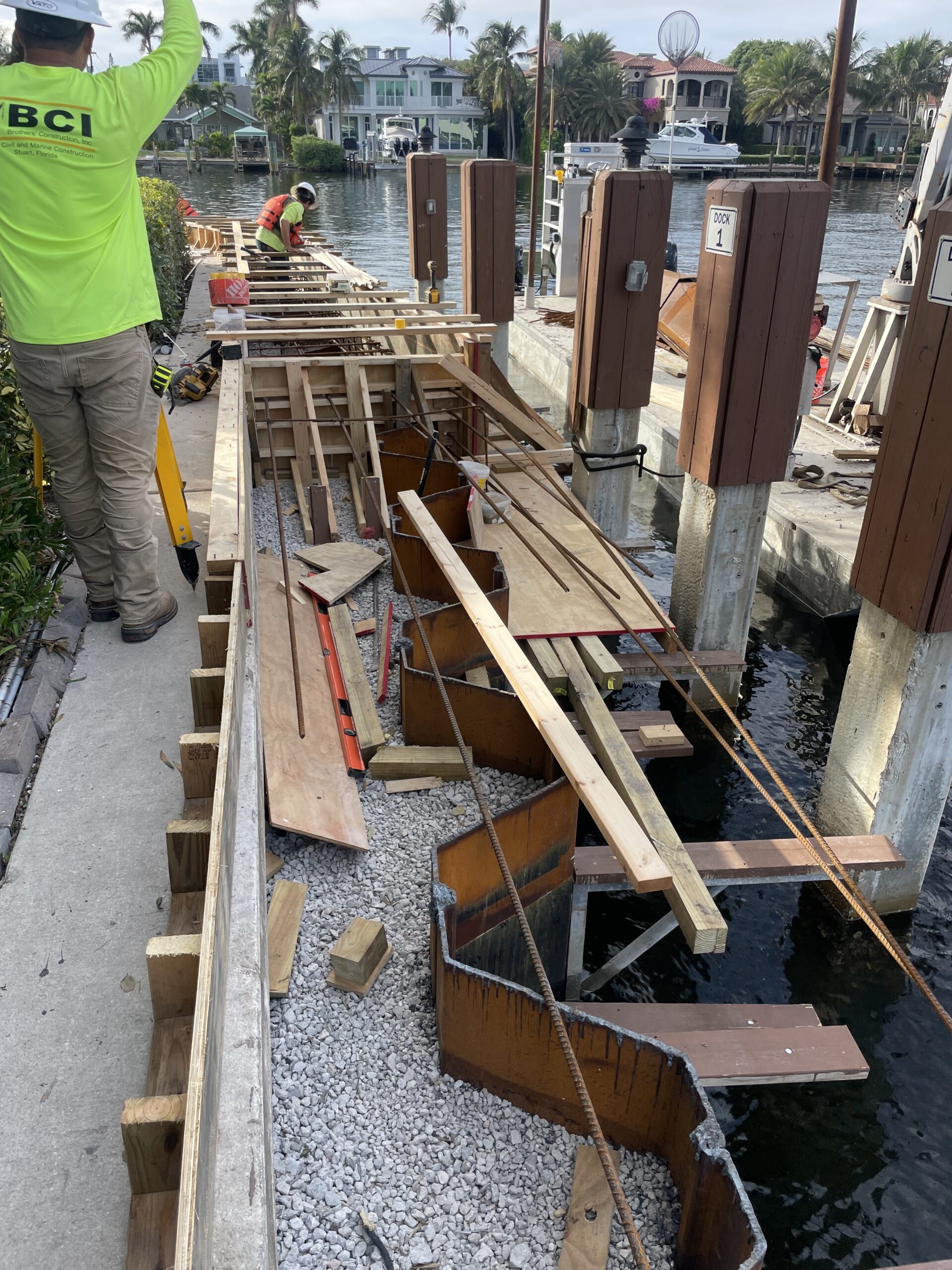

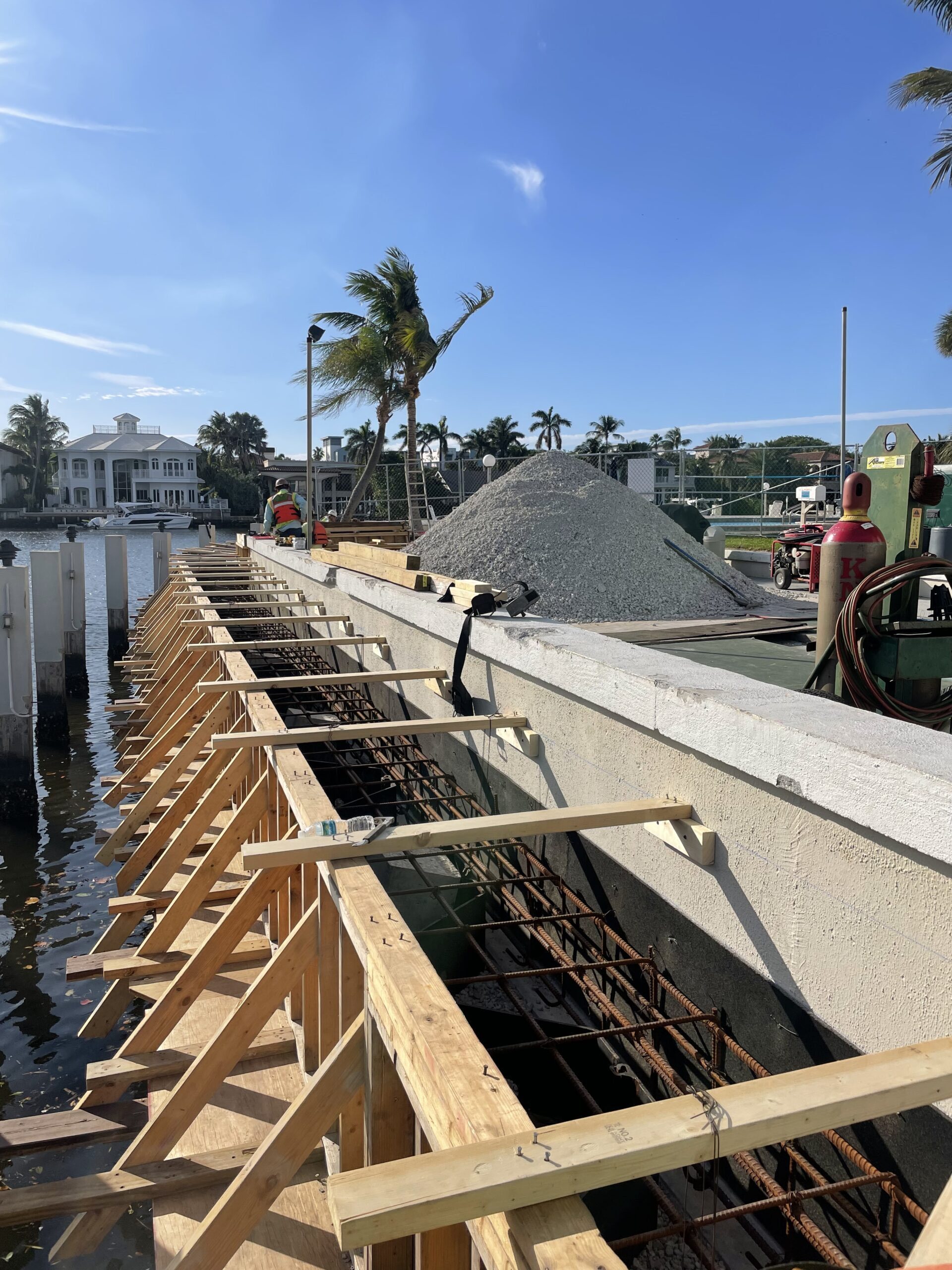

- Construct approximately 550 linear feet of new coated steel sheet pile seawall with a reinforced concrete cap.

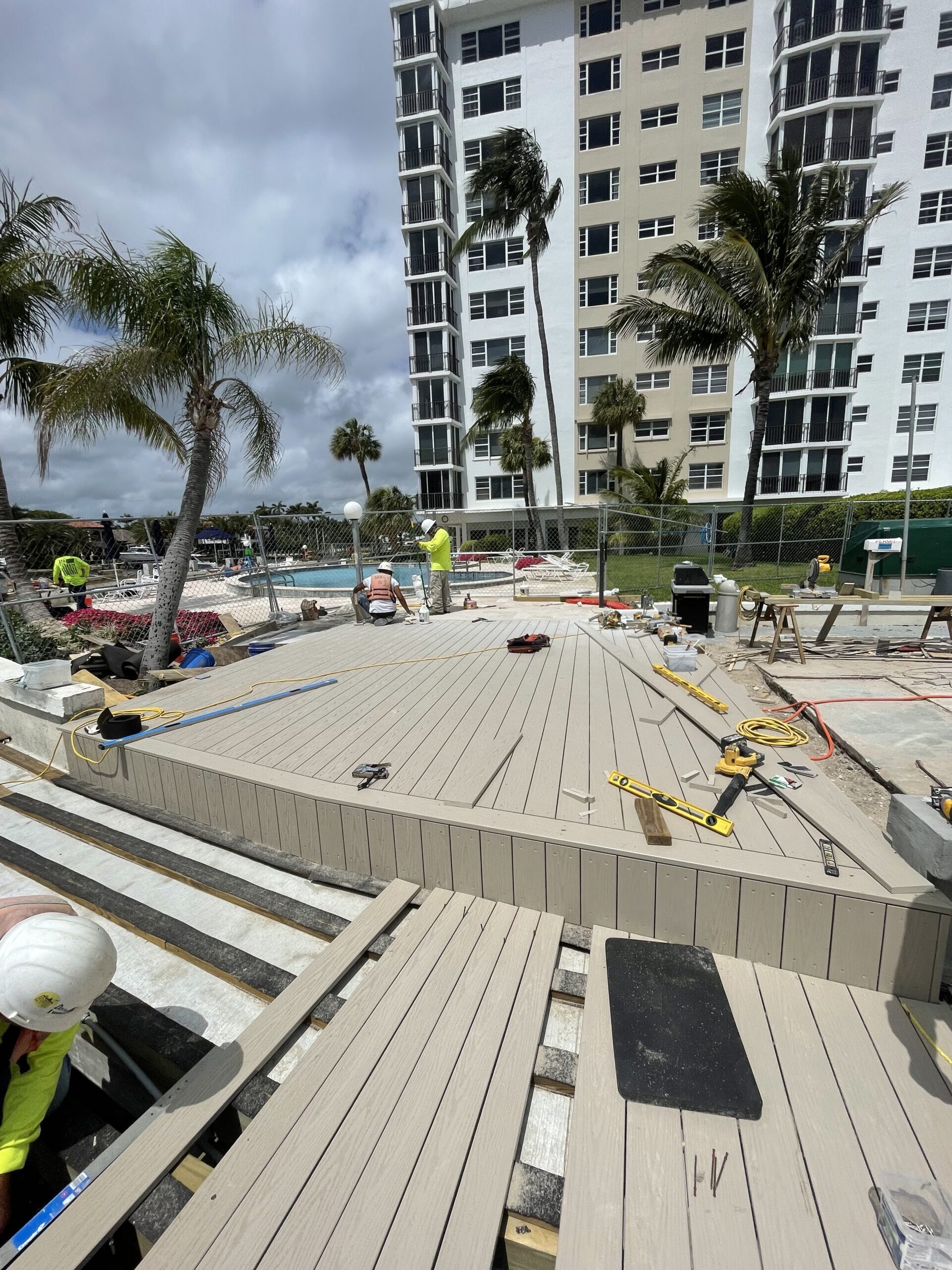

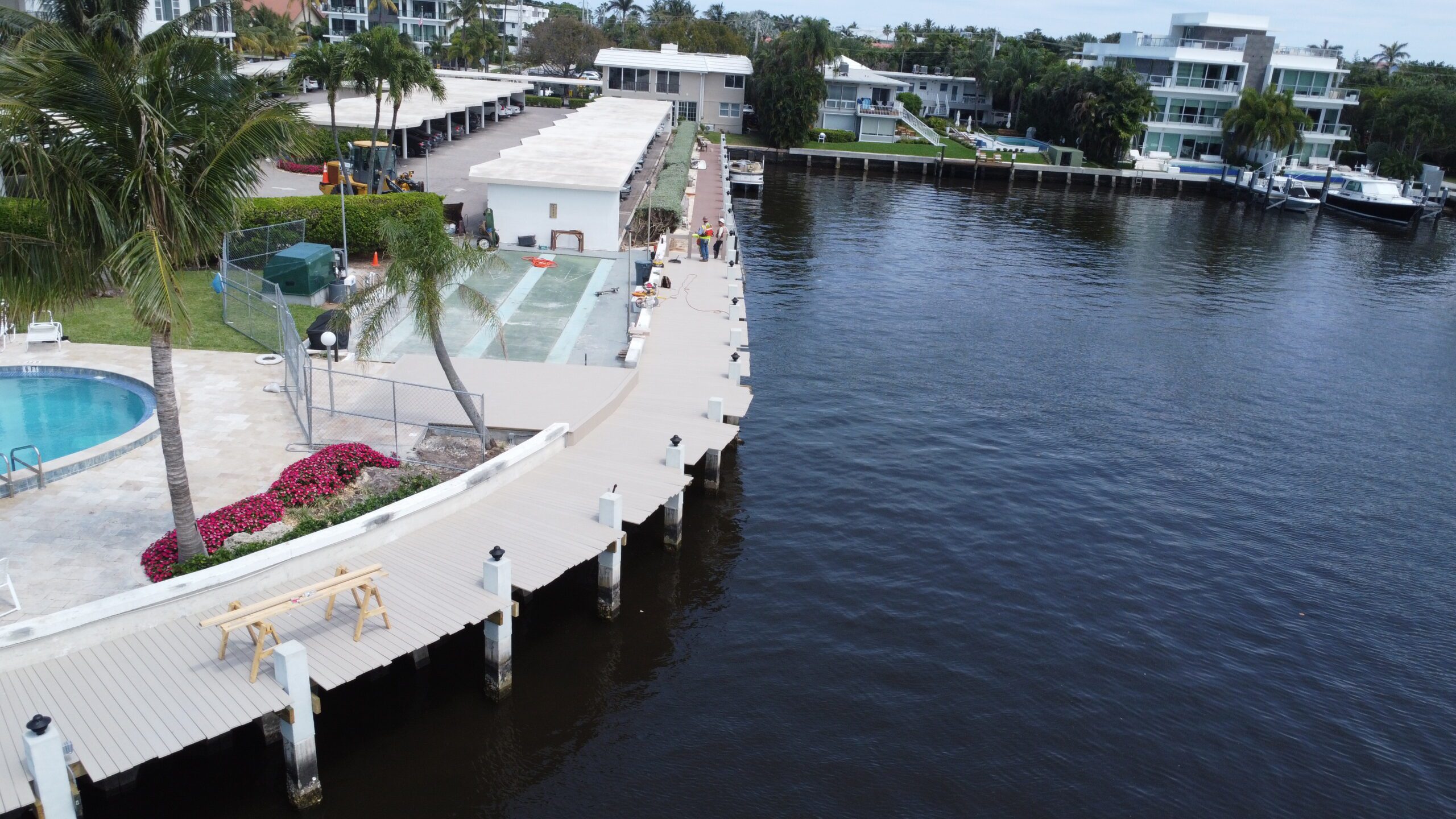

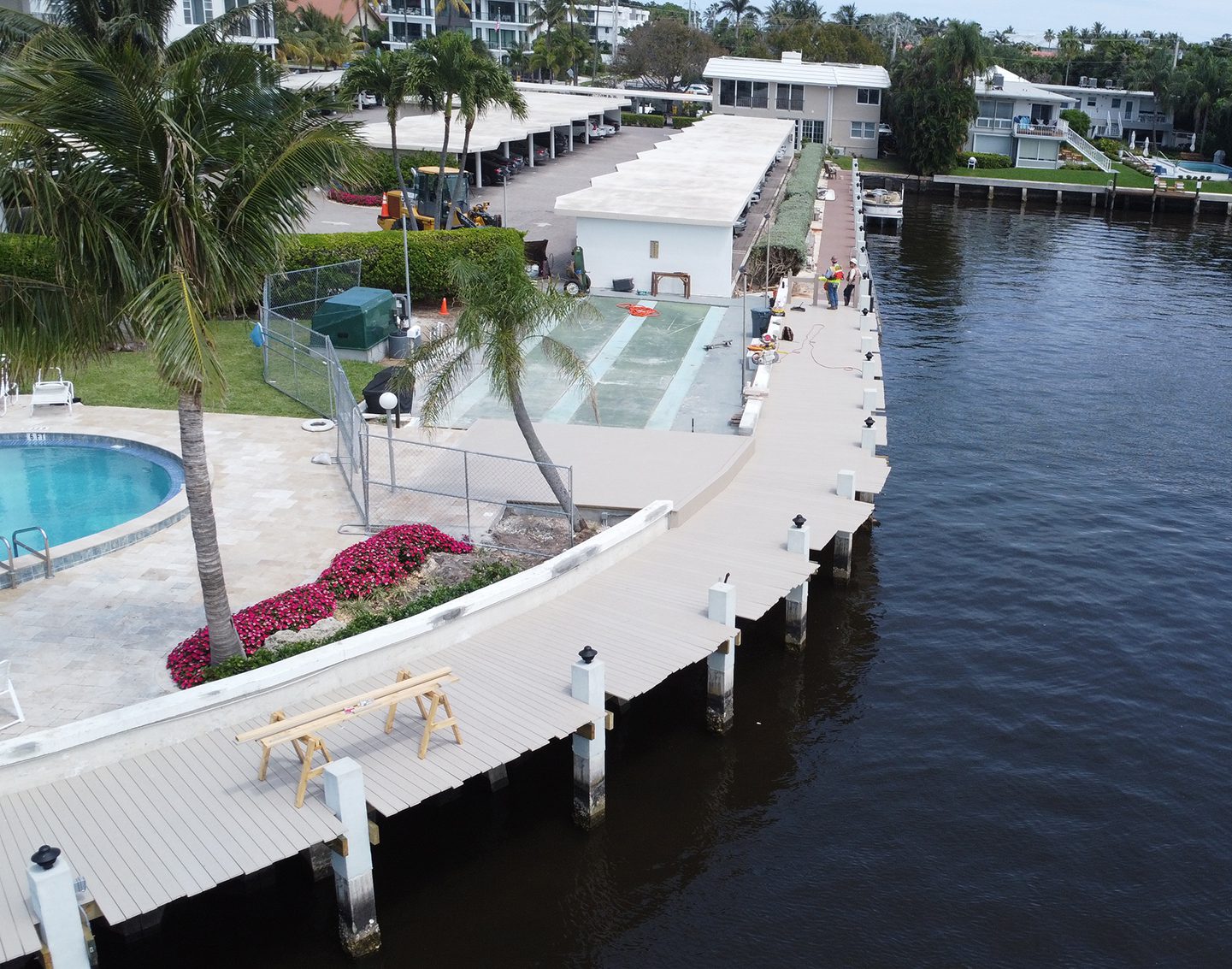

- Installation of a new timber wharf system running the length of the seawall, built from pressure-treated timber framing, Endeck PVC decking, and stainless-steel hardware.

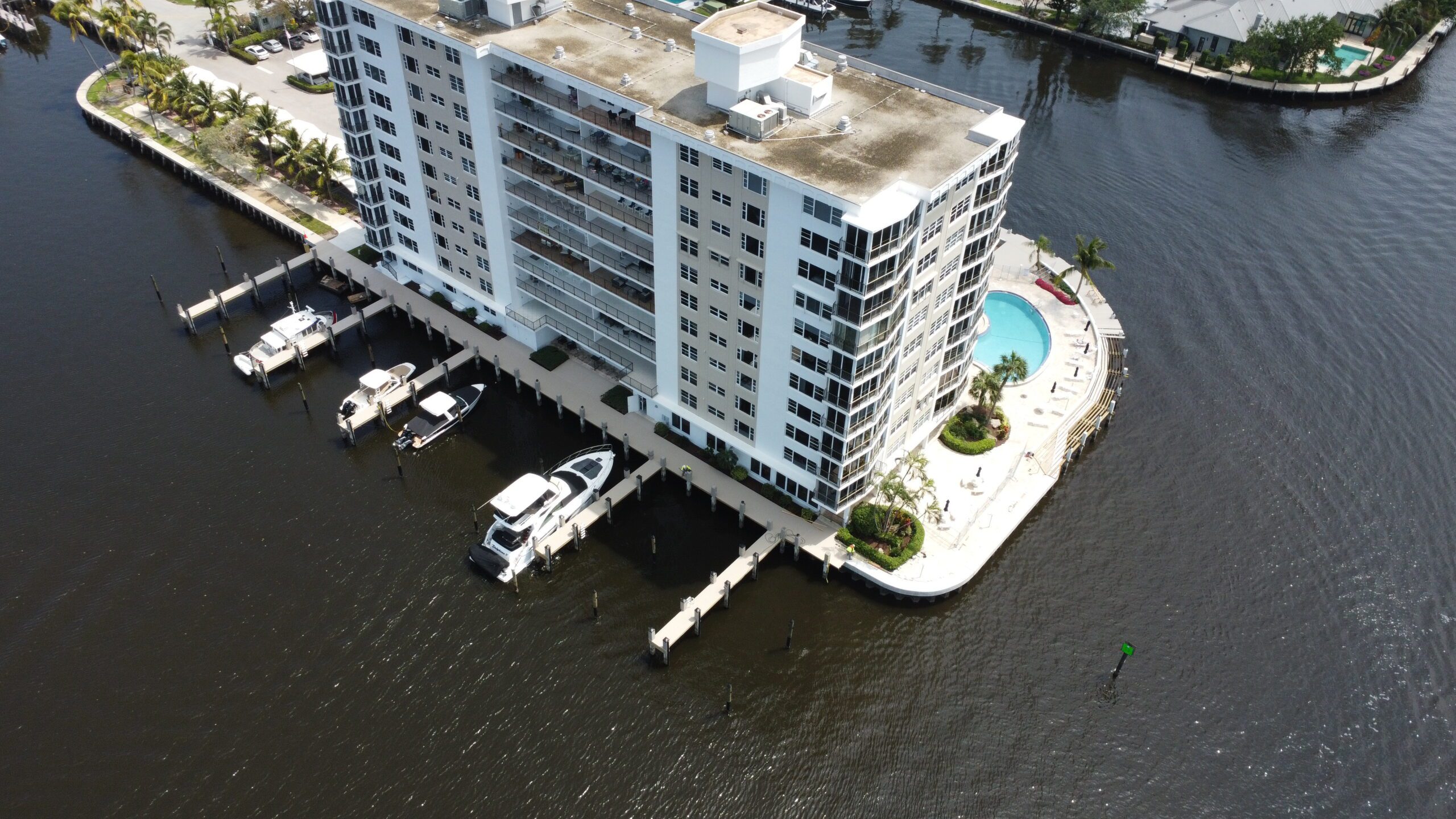

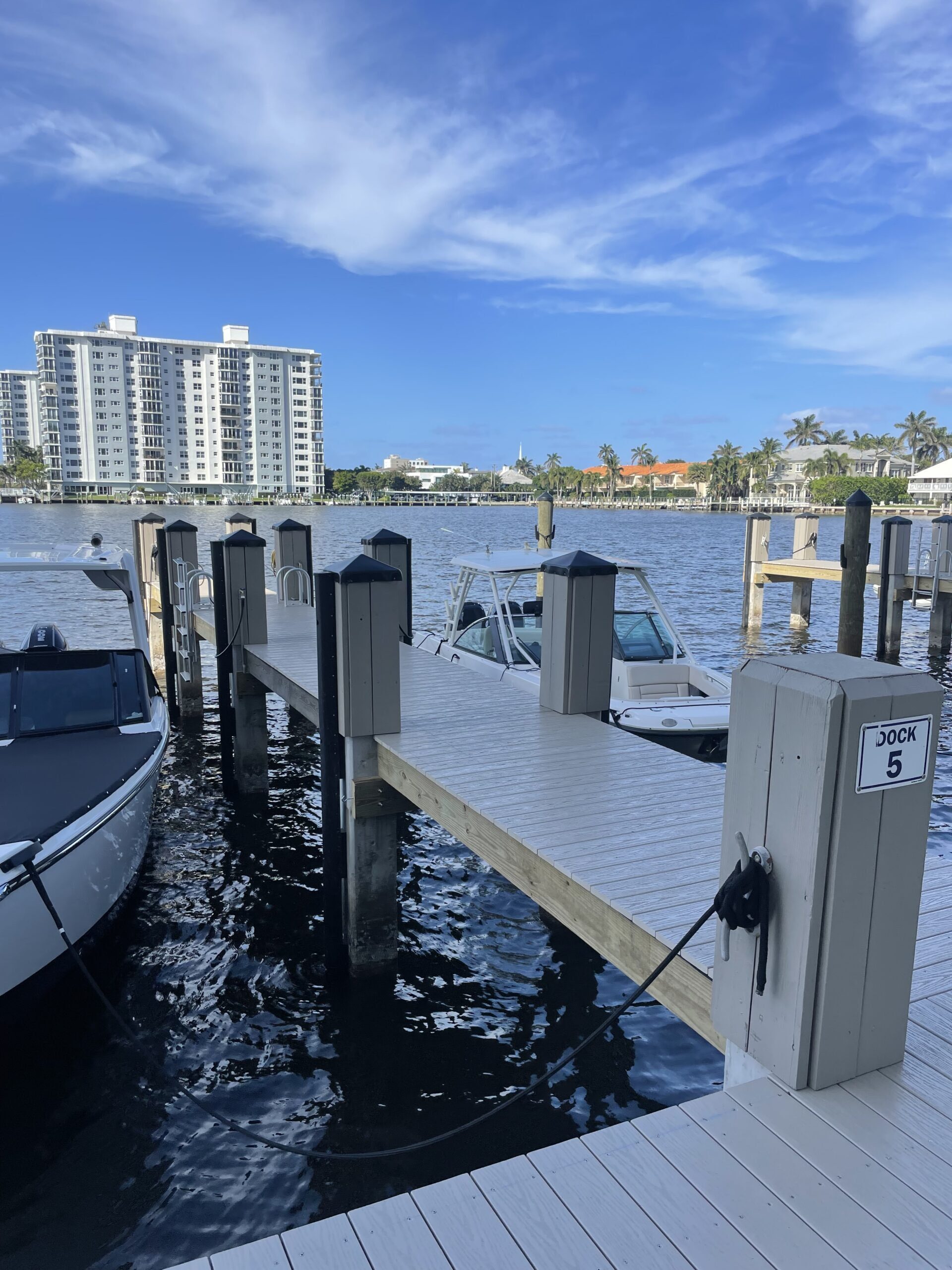

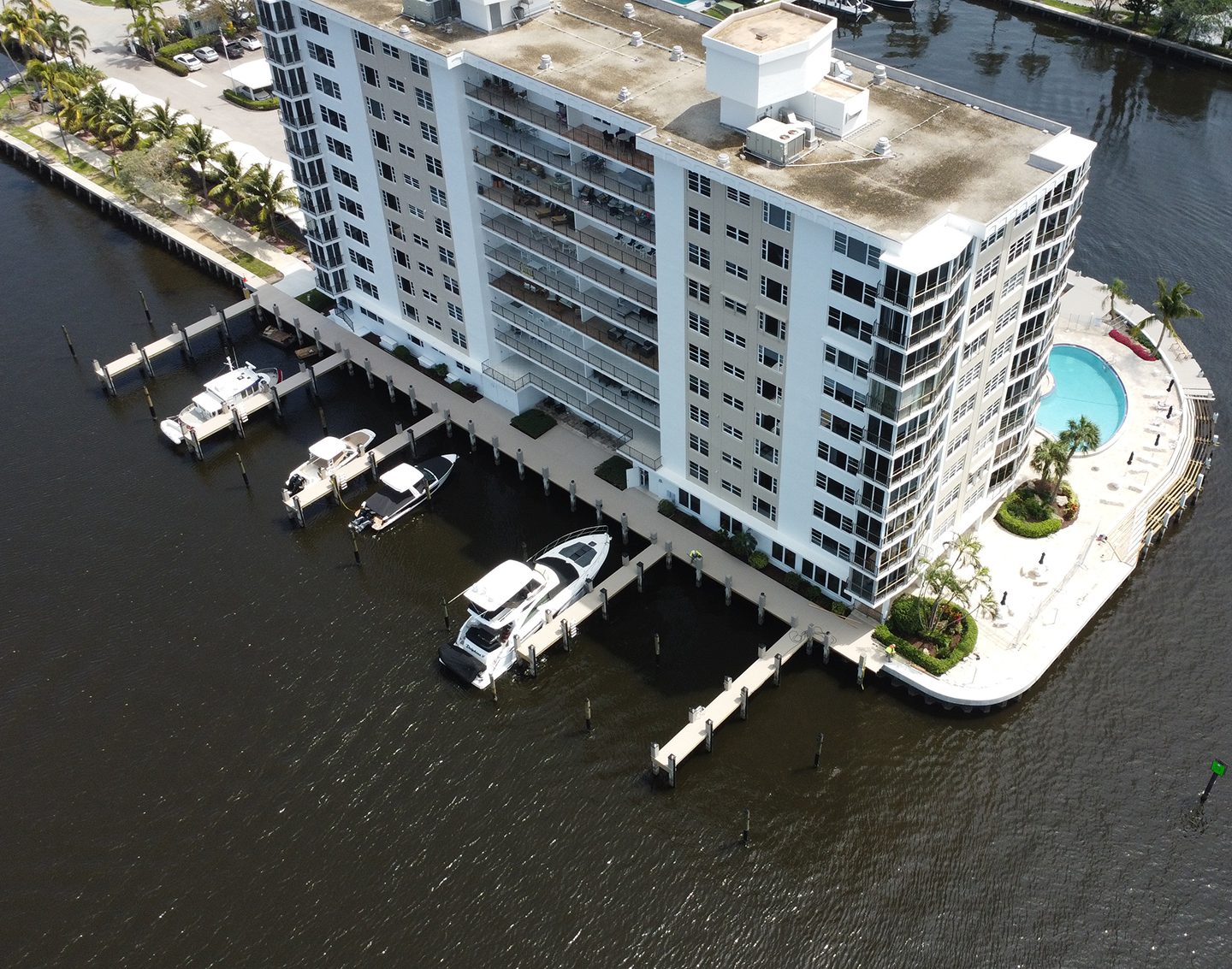

- Construction of new timber finger piers to provide improved residential docking for condominium owners.

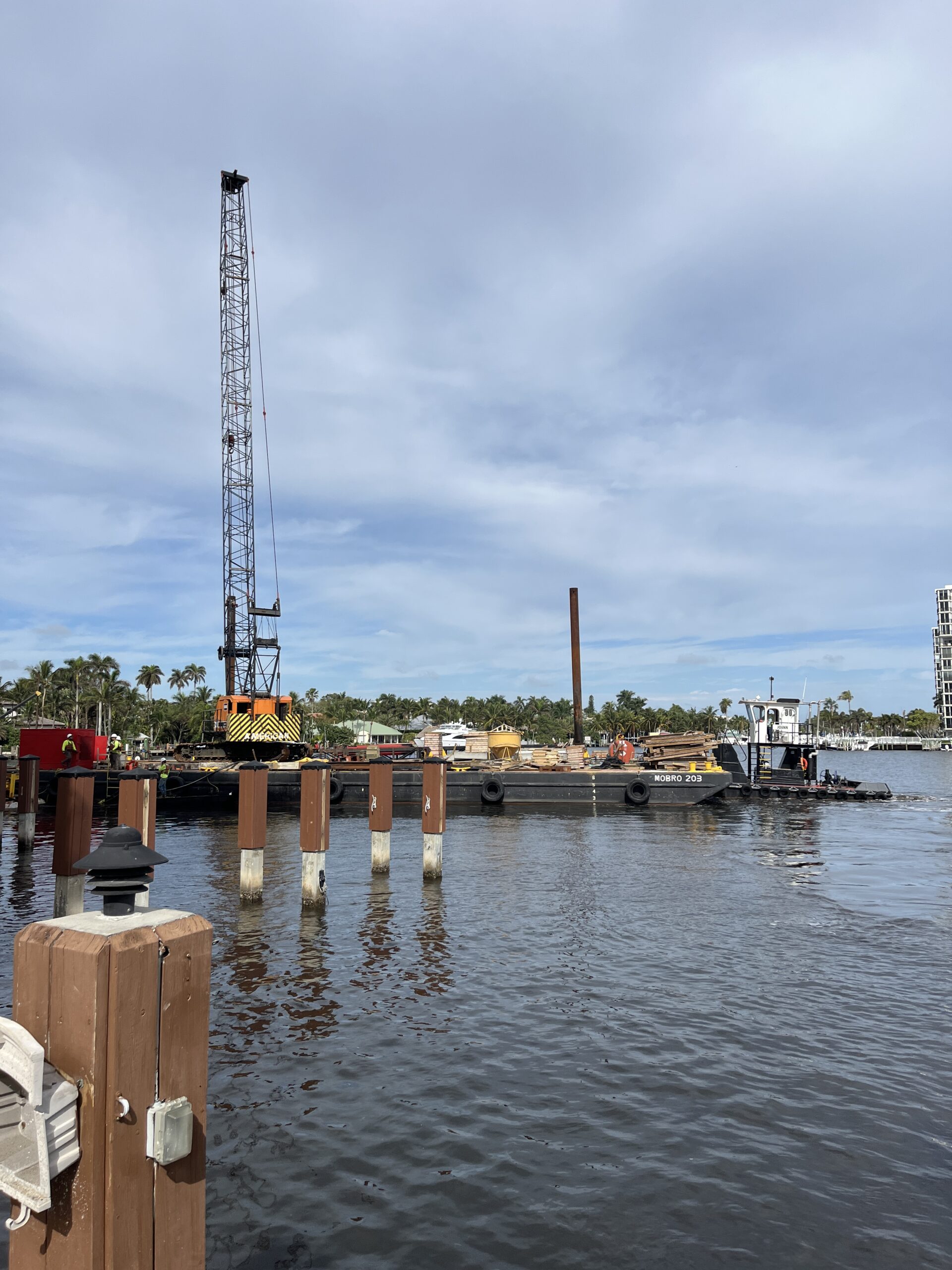

- Marine construction was performed from barges and floating equipment.

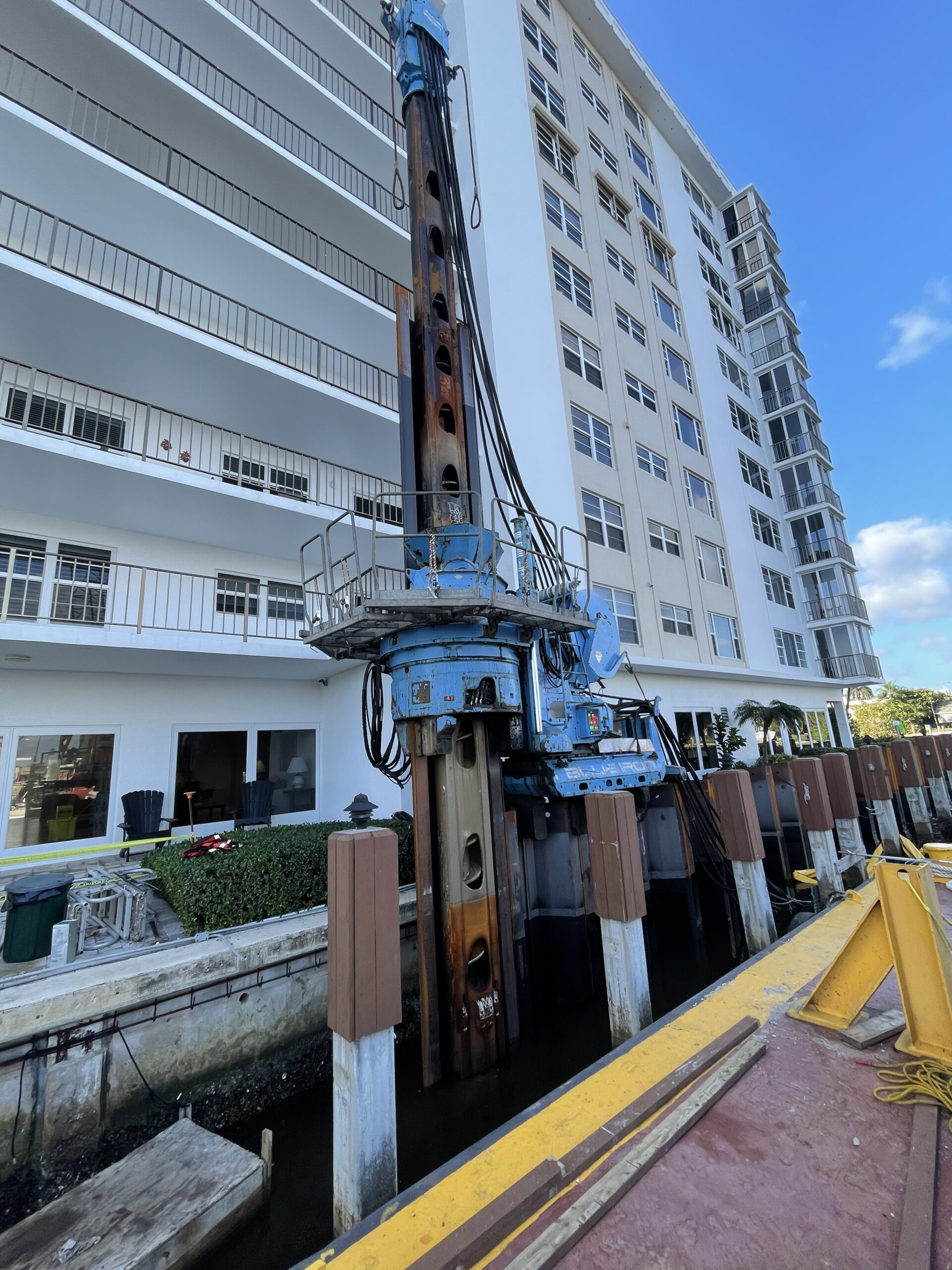

- Managed vibration control for sheet pile installation, including a two-method installation plan that combined standard marine driving with low-vibration press-in equipment near the building.

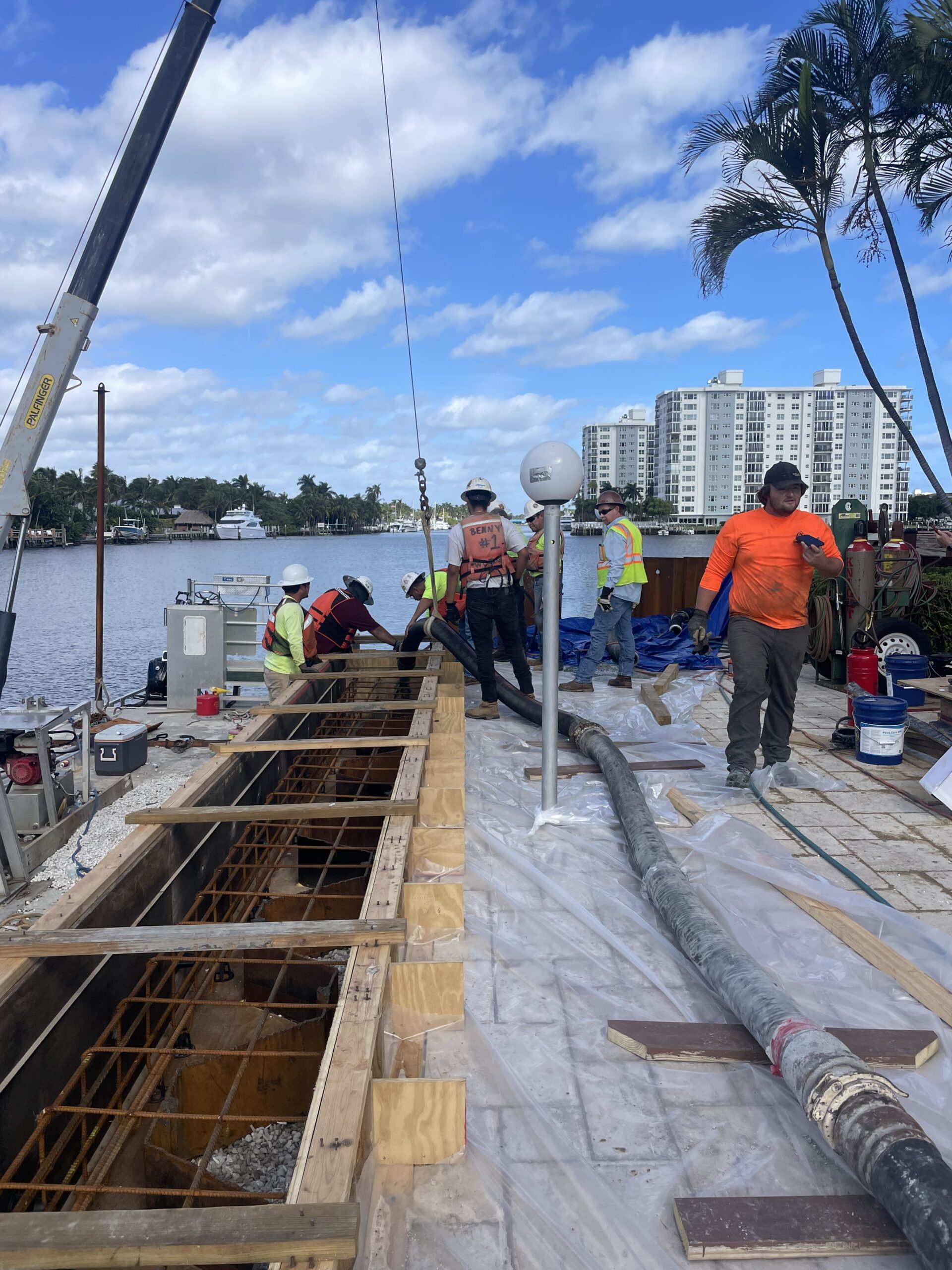

- Completed all material deliveries, staging, and concrete placement from the water to avoid impacts to the occupied condominium during peak winter residency.
- Coordinated with the engineer and ownership to redesign and phase the project based on structural priorities and budget considerations.
