Drayton Island Ferry Bridges
Name
Drayton Island Ferry Bridges
Location
Georgetown, Florida
Putnam County
Owner
FDOT District 2
Engineer
scope of work

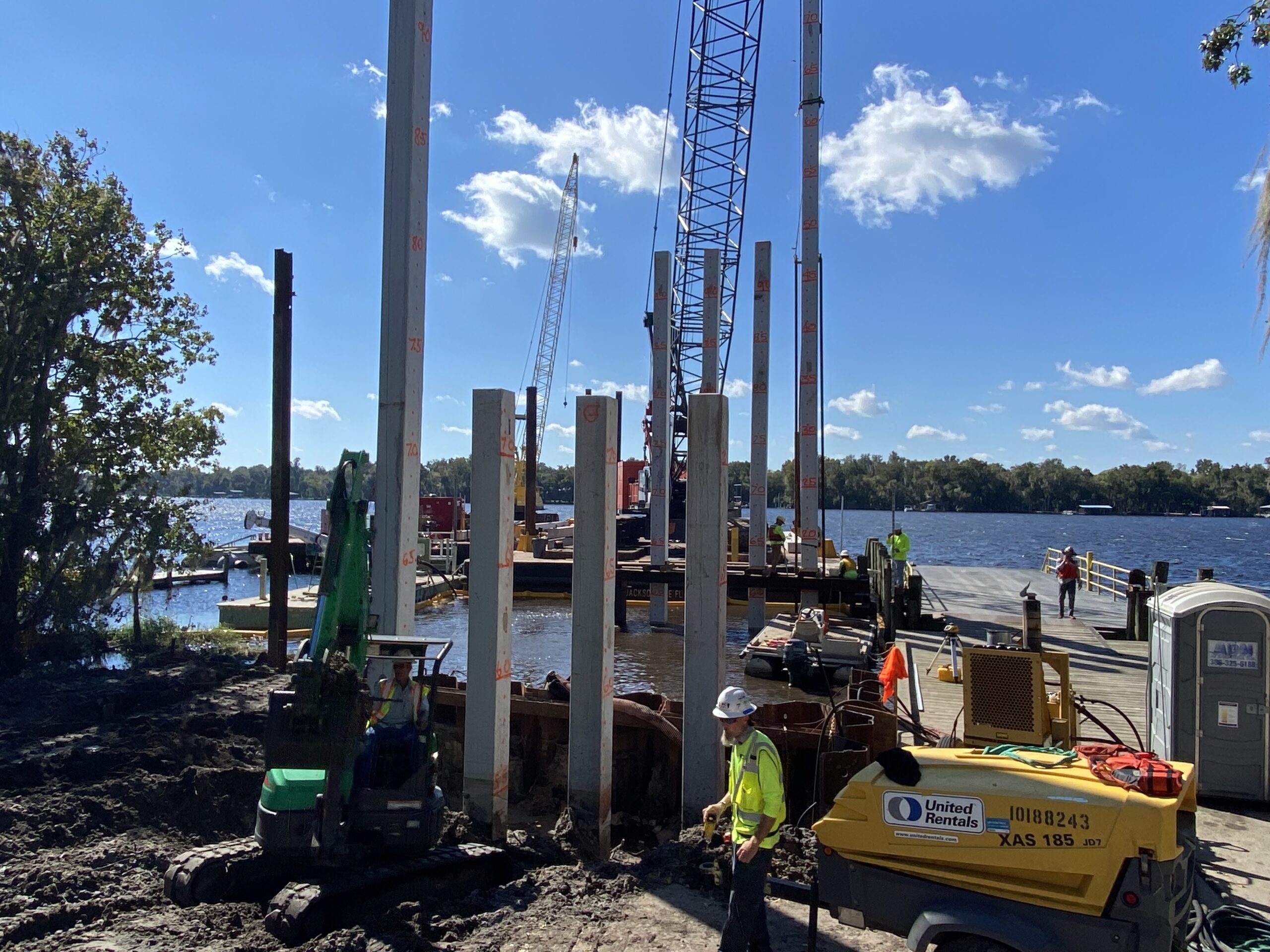

- 18” pre-stressed concrete pile foundations, 100% PDA tested, up to 110’ casting lengths.

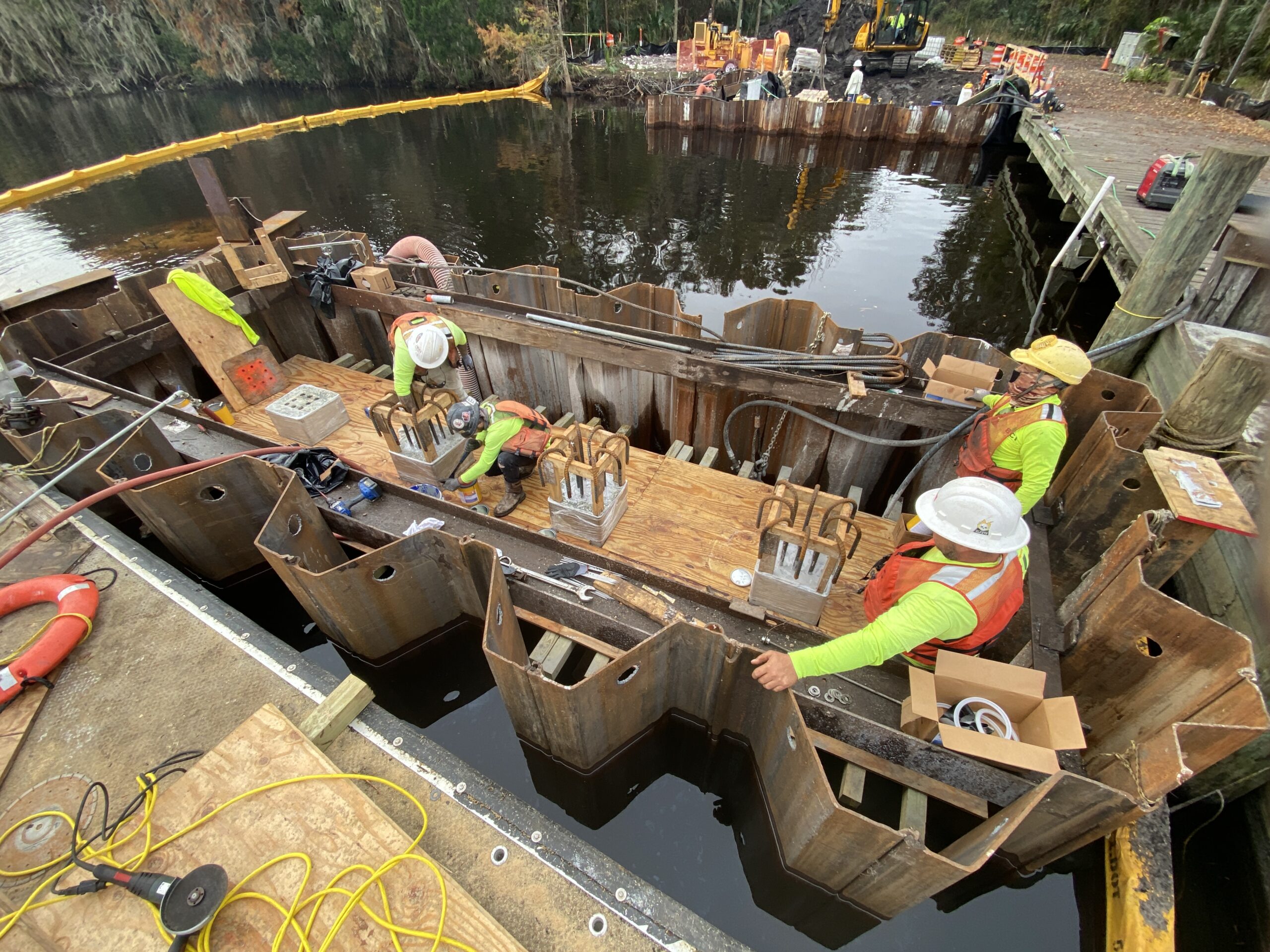

- Cast-in-place concrete bridge pile caps below water level, utilizing dewatered cofferdam systems.

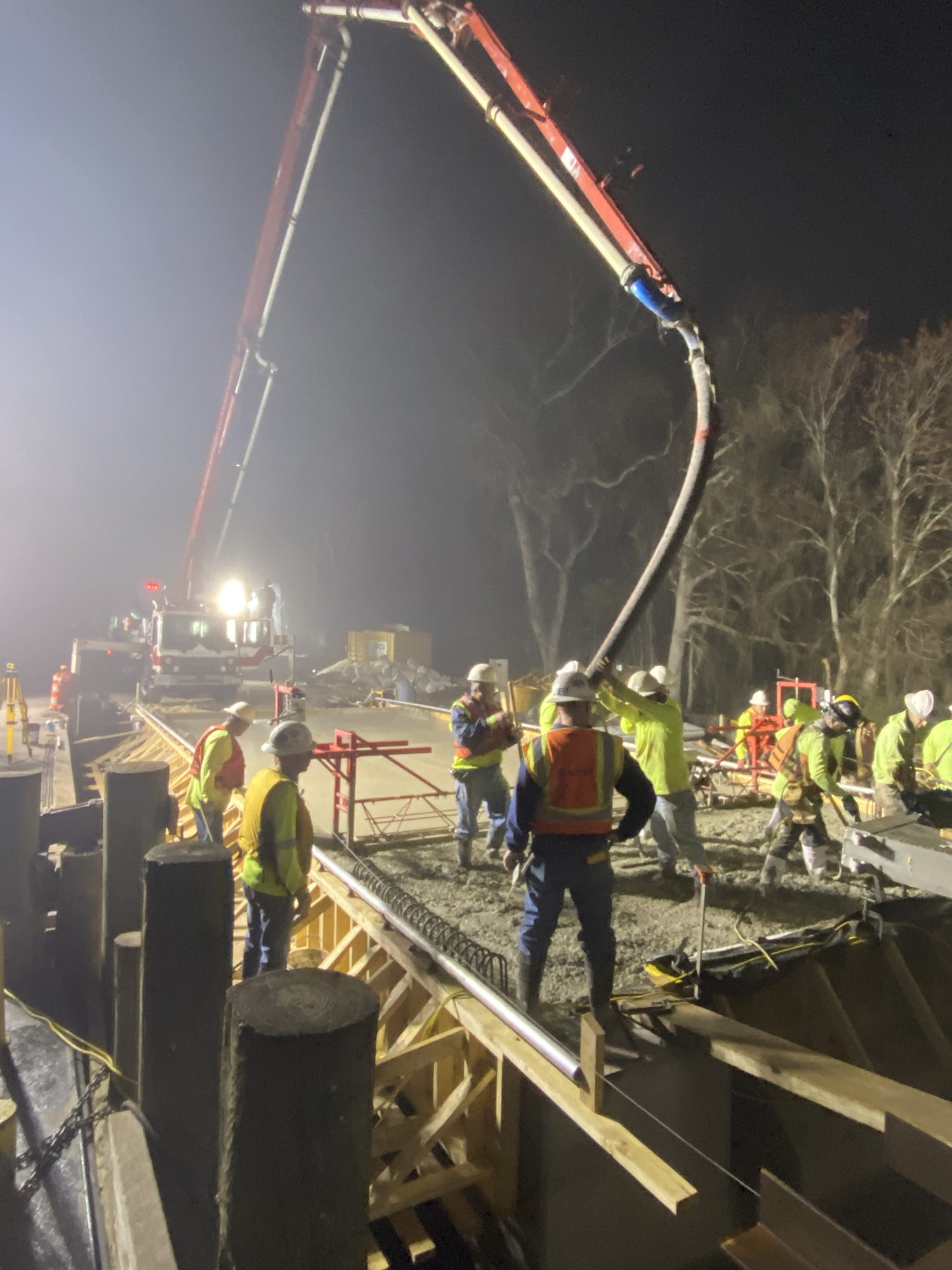

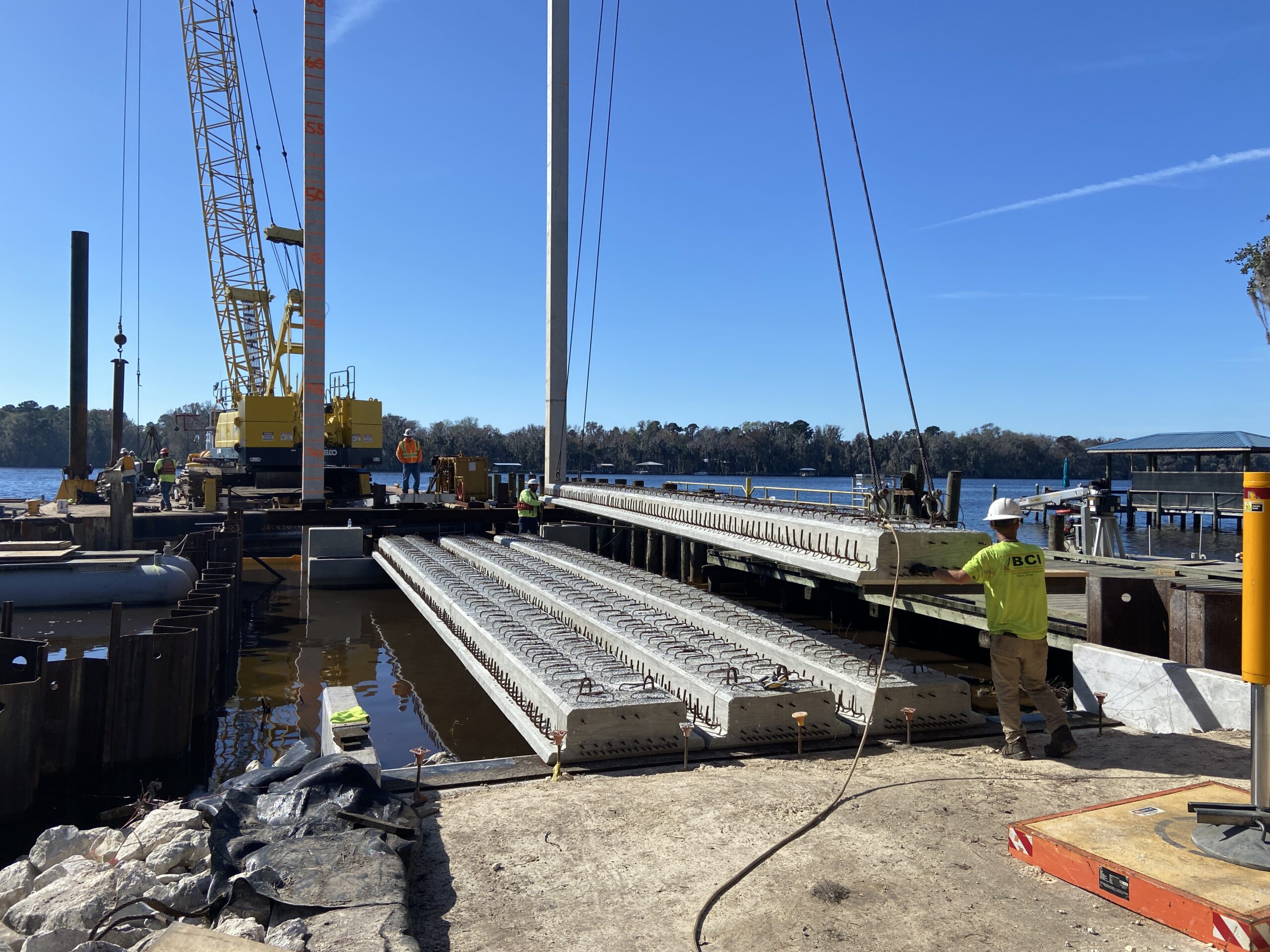

- 18”x 60’ and 15”x 50’ FSB decks beams, CIP deck topping pours, and TxDOT style traffic railings.

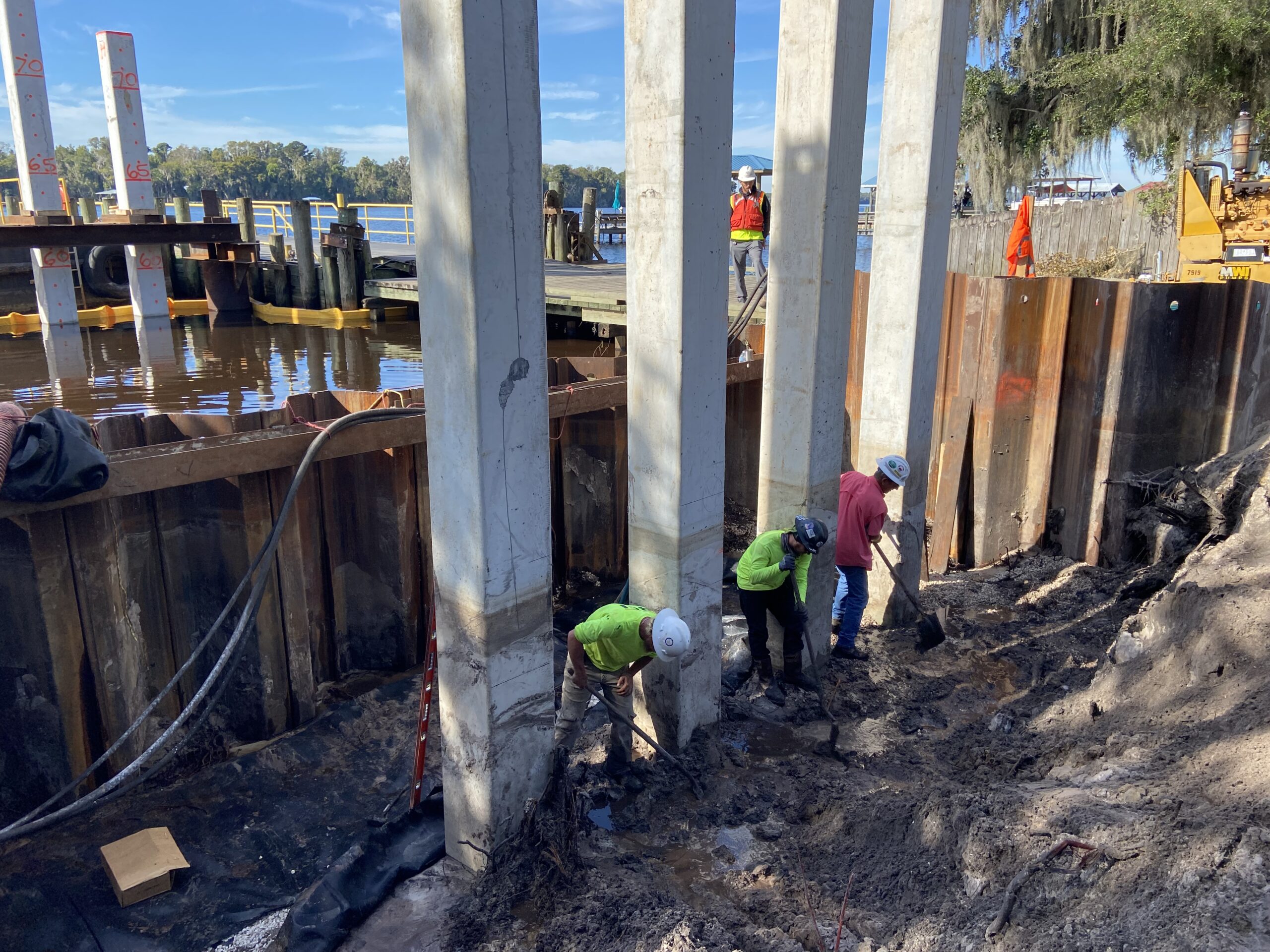

- Stone revetment systems and cement rip rap walls at end bents, using dewatered cofferdam systems.
- Concrete pile-supported FRP fender systems spanning 128’, timber dock walkways, and dolphin mooring clusters.

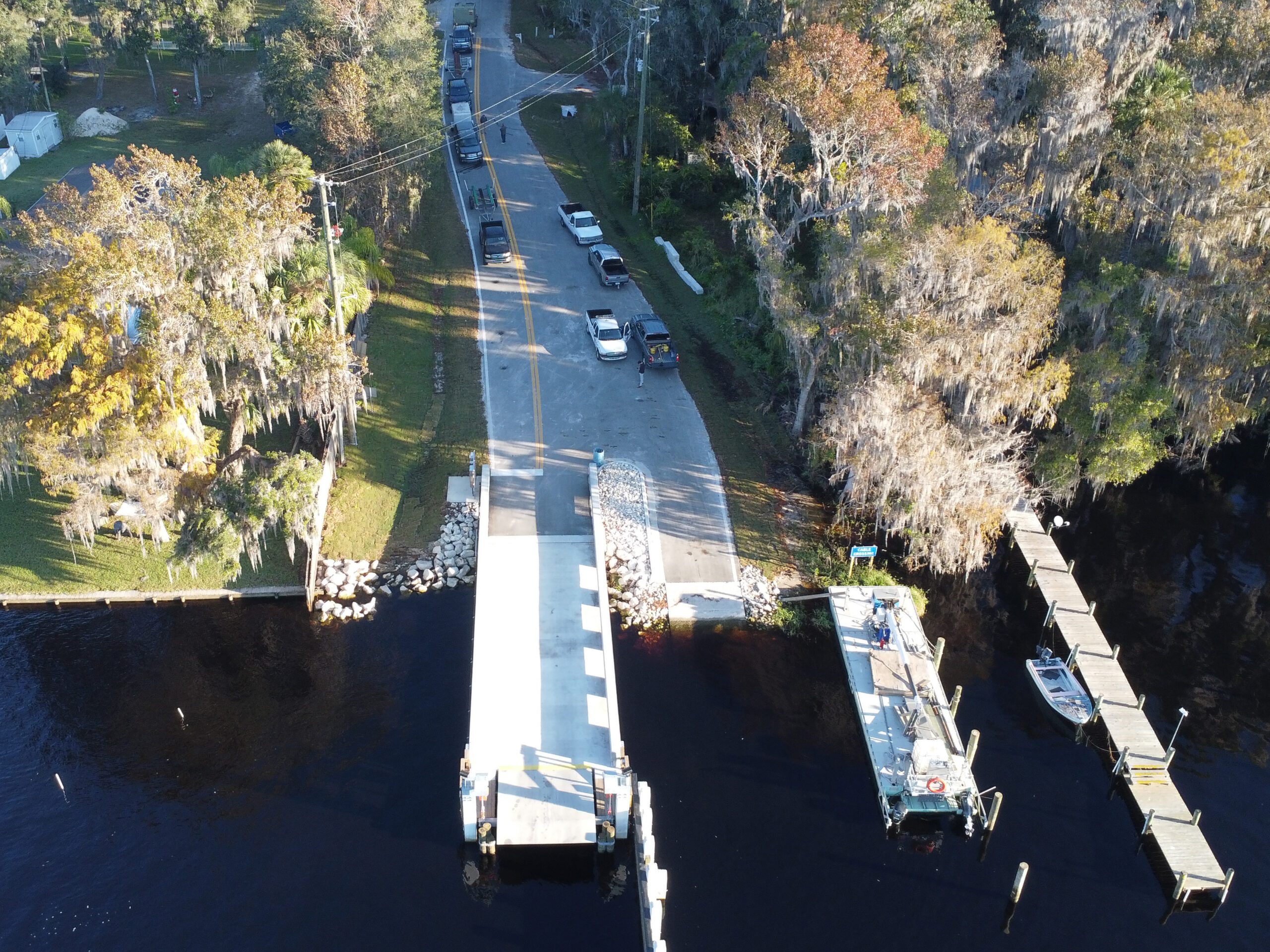

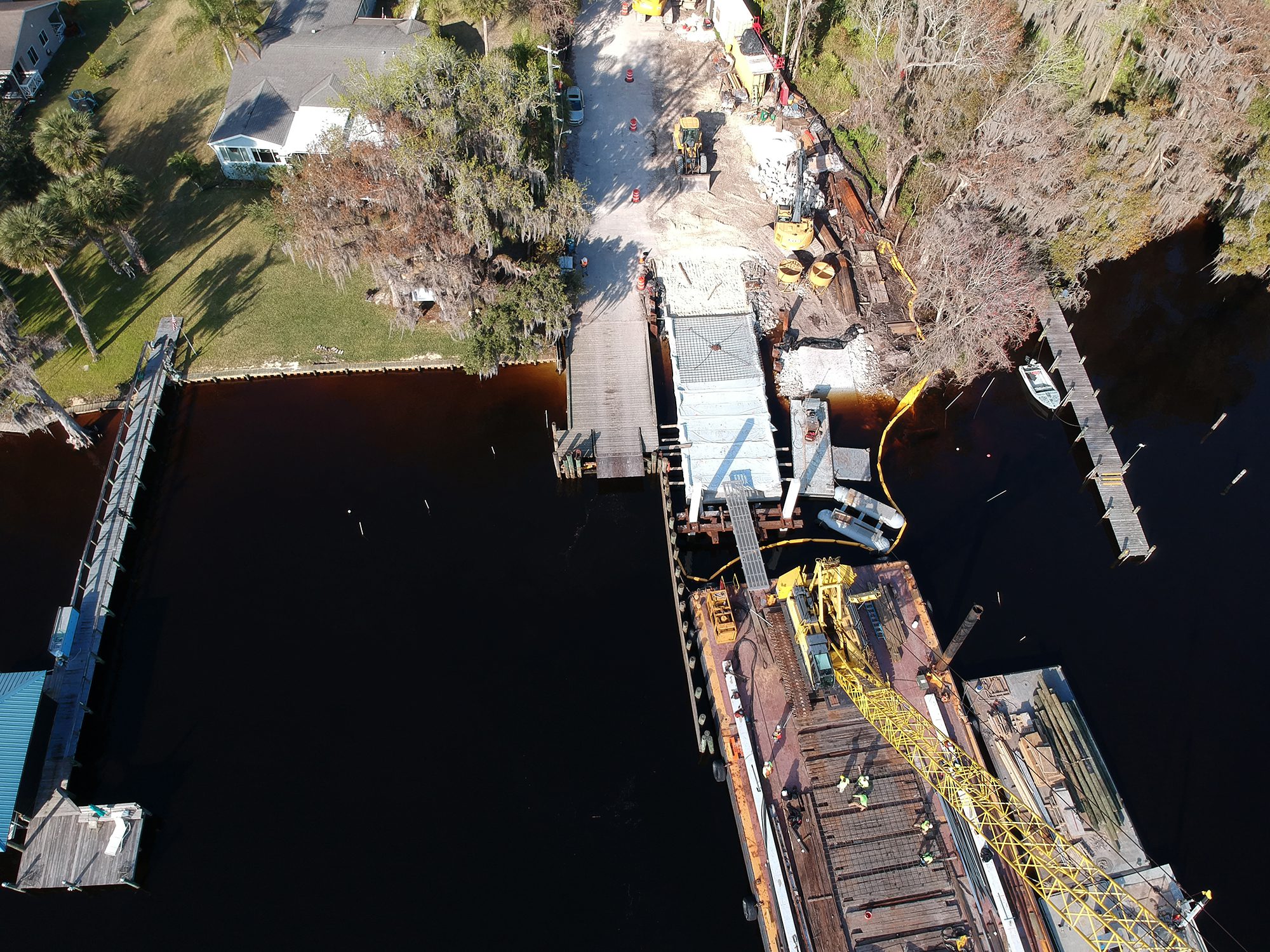

- Pre-cast concrete boat ramp built in dewatered cofferdam with stone revetment protection.
- Two prefabricated structural steel mechanical ramp systems along with electrical and roadway improvements.
- Underwater powerline as-builts, and AT&T line relocations with dive teams.
